Oil transmission

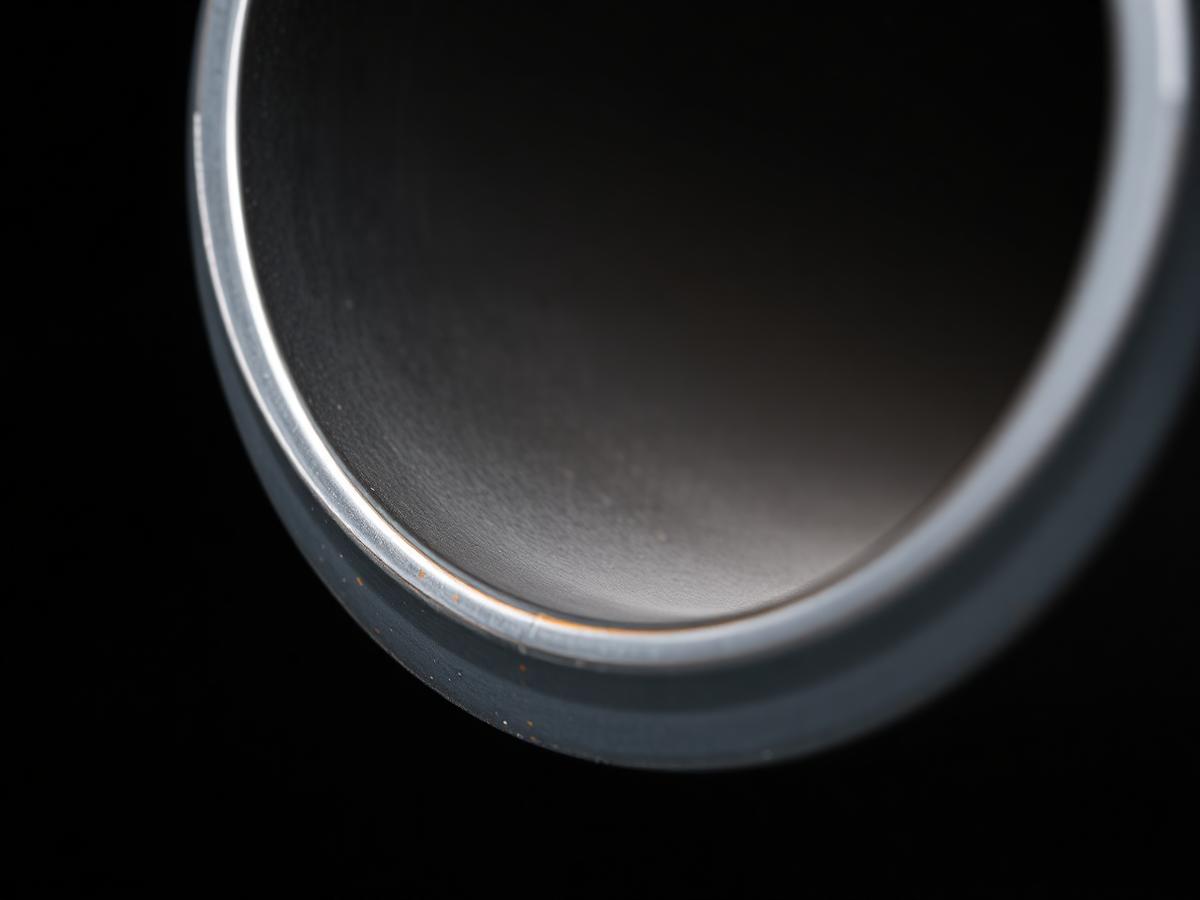

Helical / longitudinal, bevelled ends, external coating.
Products
Two mills. One standard of precision.
Helical and longitudinal submerged arc welded line pipe, manufactured to API 5L and supplied with a complete inspection dossier.
Dimensional range
Mill capability
MillHelical seam SAW
Outside diameter508 – 2134 mm
OD (inch)20″ – 84″
Wall thickness6.4 – 22.2 mm
Lengthup to 24 m
Capacity250,000 MT/y
MillLongitudinal seam SAW
Outside diameter610 – 1524 mm
OD (inch)24″ – 60″
Wall thickness6.4 – 30.5 mm
Lengthup to 12.2 m
Capacity180,000 MT/y
| Mill | Outside diameter | OD (inch) | Wall thickness | Length | Capacity |
|---|---|---|---|---|---|
| Helical seam SAW | 508 – 2134 mm | 20″ – 84″ | 6.4 – 22.2 mm | up to 24 m | 250,000 MT/y |
| Longitudinal seam SAW | 610 – 1524 mm | 24″ – 60″ | 6.4 – 30.5 mm | up to 12.2 m | 180,000 MT/y |
Materials
Grades & mechanical properties
GradeAPI 5L Gr. B
Min. yield (MPa)245
Min. tensile (MPa)415
Typical serviceWater & general transmission
GradeAPI 5L X42
Min. yield (MPa)290
Min. tensile (MPa)415
Typical serviceLow-pressure oil lines
GradeAPI 5L X52
Min. yield (MPa)360
Min. tensile (MPa)460
Typical serviceOil & gas gathering
GradeAPI 5L X60
Min. yield (MPa)415
Min. tensile (MPa)520
Typical serviceHigh-pressure transmission
GradeAPI 5L X65
Min. yield (MPa)450
Min. tensile (MPa)535
Typical serviceHigh-pressure transmission
GradeAPI 5L X70
Min. yield (MPa)485
Min. tensile (MPa)570
Typical serviceLong-distance gas trunk lines
| Grade | Min. yield (MPa) | Min. tensile (MPa) | Typical service |
|---|---|---|---|
| API 5L Gr. B | 245 | 415 | Water & general transmission |
| API 5L X42 | 290 | 415 | Low-pressure oil lines |
| API 5L X52 | 360 | 460 | Oil & gas gathering |
| API 5L X60 | 415 | 520 | High-pressure transmission |
| API 5L X65 | 450 | 535 | High-pressure transmission |
| API 5L X70 | 485 | 570 | Long-distance gas trunk lines |
Supply by application
Where our pipe goes
Gas transmission
Longitudinal SAW with 3LPE / FBE coating.
Water pipelines
Helical SAW with cement mortar lining.
Structural piling
Helical SAW, plain ends.
Casing & conductor
Longitudinal SAW, threaded or bevelled.
Slurry lines
Helical SAW, heavy wall with abrasion allowance.
Contact
Tell us about your pipeline.
Send us your specification — diameter, wall thickness, grade, coating and tonnage — and our team will come back with availability and lead times.
